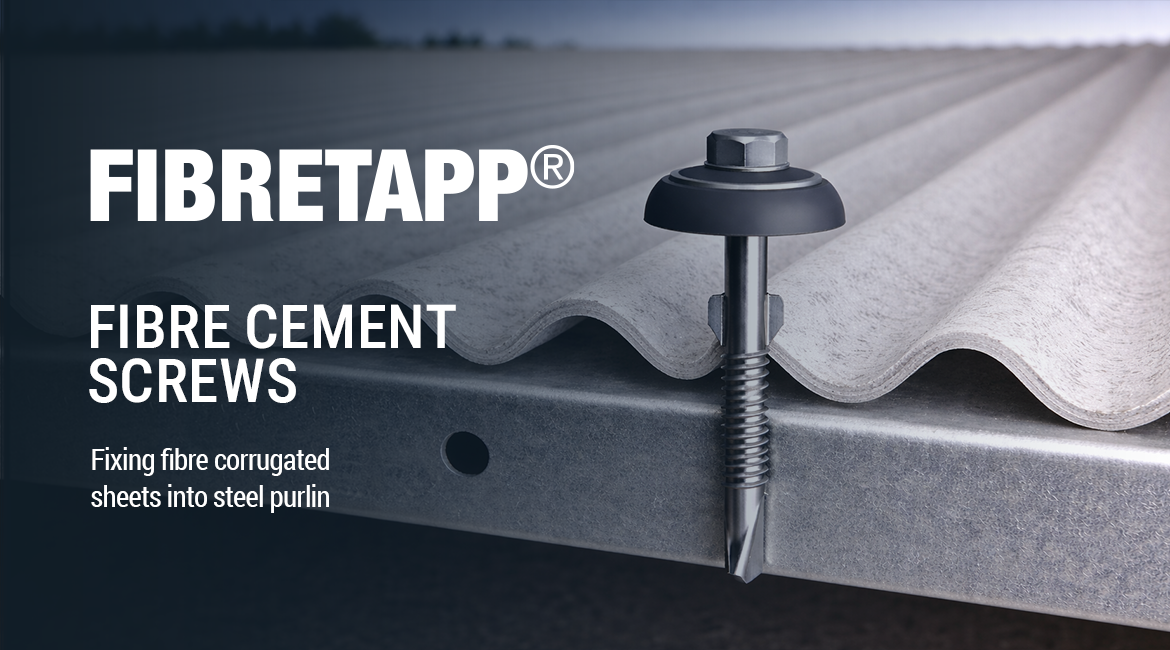

CORROSHIELD® Fasteners FIBRETAPP® Corrugated Fibre Cement Screw
Fibre cement roofing sheets need fastening solutions that support controlled drilling and weather sealing—especially in exposed roof zones. FIBRETAPP® Corrugated Fibre Cement Screws are engineered for fibre corrugated sheet fixing into steel purlins, making them the ideal fiber cement roofing screws and corrugated fiber cement fasteners for demanding roofing environments. The partial thread with FIBRETAPP® wing and dome washer system improves sealing and installation reliability, also suited as fiber cement siding screws and screws for hardie board siding where controlled fixing is required.

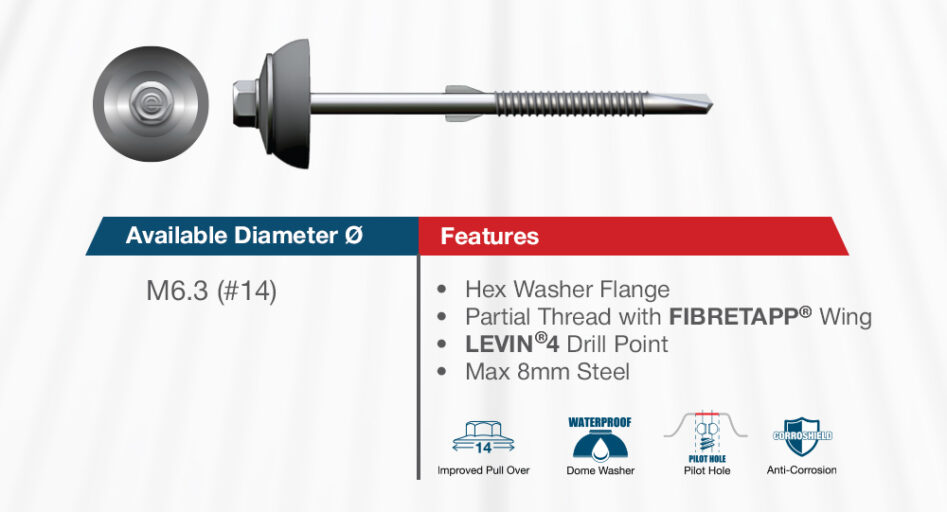

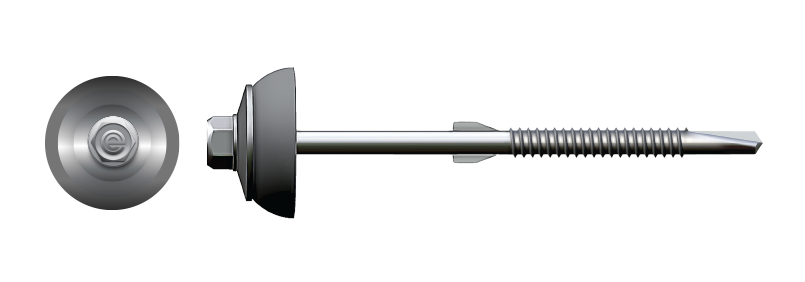

Specification
Material: Carbon Steel
Head Type: Hex Washer Flange
Thread: Partial Thread with FIBRETAPP® Wing
Drill Point: LEVIN® 4 Drill Point
Drilling Capacity: Max 8mm steel
Washer: Dome Washer (Ø 25mm in the listed range)
Best-Fit Applications
Ideal for:
Fibre cement roof sheets, the primary application for fiber cement roofing screws and corrugated fiber cement fasteners
Roofing sheet installations requiring sealing-focused fastening using reliable fibre sheet fasteners
Siding and cladding work where fiber cement siding screws and screws for hardie board siding are needed
Substrate:
Steel purlins — ideal substrate for allfiber cement screwsin this range
Key Features & Benefits
/1

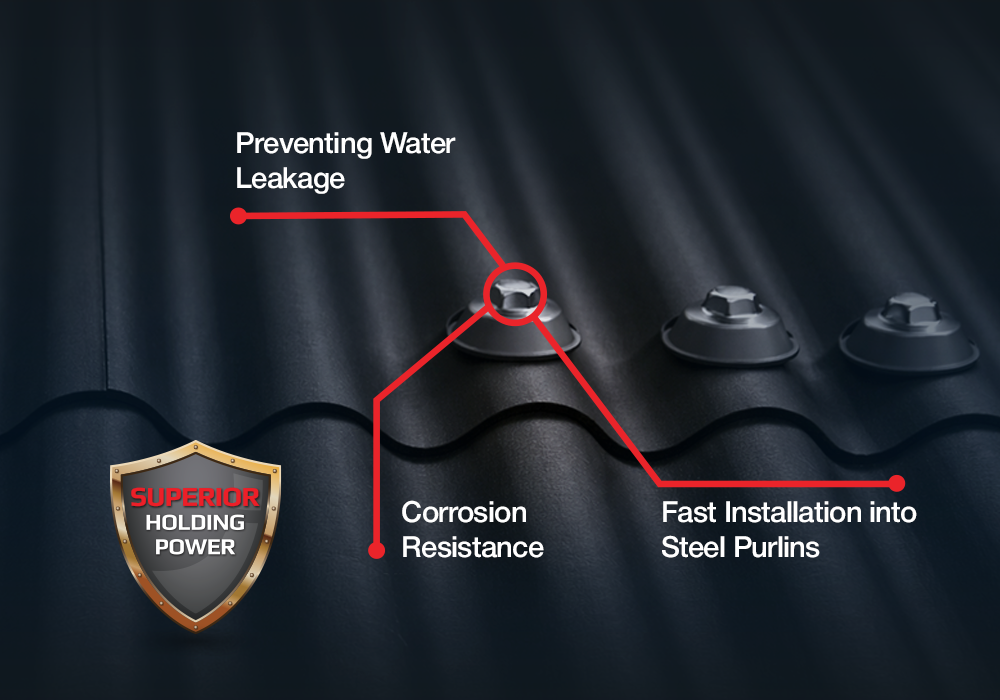

Dome washer for water sealing
FIBRETAPP® includes a dome washer that supports water sealing at the fixing point, important for corrugated roofing profiles and essential for reliable fiber cement roofing screws in exposed roof zones.
/2
Pilot hole effect for controlled fixing
The FIBRETAPP® wing supports pilot hole action during installation, helping achieve cleaner fixing on fibre sheet applications. This controlled action protects brittle materials, making it ideal as a fibre sheet fastener and screws for hardie board siding.
/3
LEVIN® drill point for steel
Configured with a LEVIN® 4 drill point and rated for drilling into up to 8mm steel, supporting faster installation and consistent engagement for all fiber cement screws and corrugated fiber cement fasteners.
/04
Partial thread for application fit
FIBRETAPP® uses partial thread combined with the winged design to match the requirements of corrugated fibre sheet roofing installations, an important design feature for fiber cement siding screws and fiber cement roofing screws.
Fastener Types

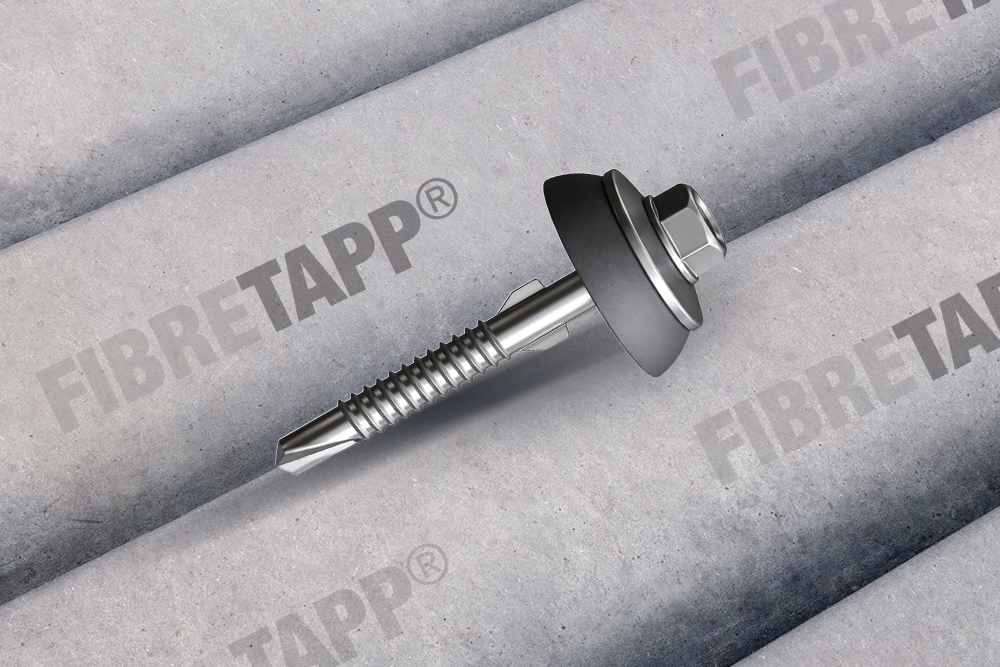

FIBRETAPP®
Designed for fixing fibre corrugated (fibre cement) sheets into steel purlins with a sealing-focused build, pilot hole action + dome washer for roofing applications. The preferred corrugated fiber cement fasteners and fiber cement roofing screws for professional installations.
Water Sealing (Dome Washer)
Pilot Hole (Winged Design)
Speed Drill (LEVIN® Drill Point)
Anti-Corrosion
Steel Purlin Fixing (Roofing)
Quality, Testing & Assurance
FIBRETAPP® is part of a fastening system supported by:
Defined manufacturing process with In-process QC checks ensuring every fiber cement screw meets dimensional and performance standards.
Testing capabilities including Corrosion resistance, hardness, drill testing, PMI & dimensional checks, critical for corrugated fiber cement fasteners in harsh environments.
Coating & Durability Standards Aligned to ASTM / AS / BS / EN standards, ensuring long-term durability for fiber cement roofing screws and fibre sheet fasteners.
How to Select the Right FIBRETAPP® Screw?
Confirm the sheet material – Select the FIBRETAPP® screw specifically designed for fibre cement, fibre sheets, or similar brittle materials, the trusted choice in fiber cement screws and screws for hardie board siding.
Choose the correct drill point – Ensure the drill tip and shank design allow clean penetration without cracking or chipping the sheet, essential for reliable fiber cement siding screws and fibre sheet fasteners.
Match thickness & support – Pick the right screw length based on sheet thickness and the underlying steel or timber support, ensuring your corrugated fiber cement fasteners and fiber cement roofing screws perform correctly.
Ensure sealing & durability – Use EPDM sealing washers and corrosion-resistant coatings for long-term weatherproof performance, the hallmark of the best fiber cement roofing screws for exposed applications.
Installation guidelines (best practices)
Confirm sheet profile and choose length based on corrugated sheet height and purlin engagement requirement.

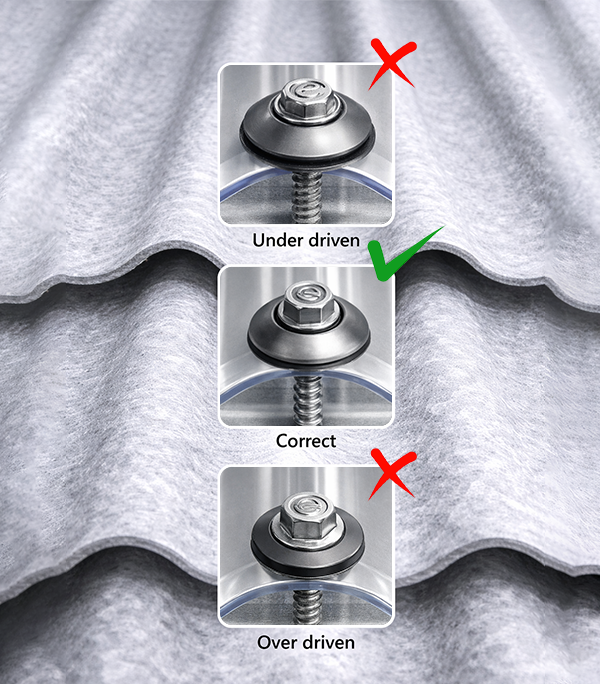

Drive the screw straight and keep washer setting controlled: secure underhead seating, do not overdrive (consistent with the brochure’s general washer-setting guidance visuals).
Use a suitable powered tool and correct drive bit/socket to maintain consistent installation torque.
Get Pricing & availability for FIBRETAPP®
Frequently asked questions
FIBRETAPP® is specified for fixing fibre corrugated sheets into steel purlins.
The listed configuration uses a 25mm dome washer for sealing-focused roofing performance.
The catalogue specifies drilling capacity of max 8mm steel (LEVIN® 4 drill point).
The brochure lists 6.3 (14g) diameter in lengths 90–130mm with Lt 30mm.
